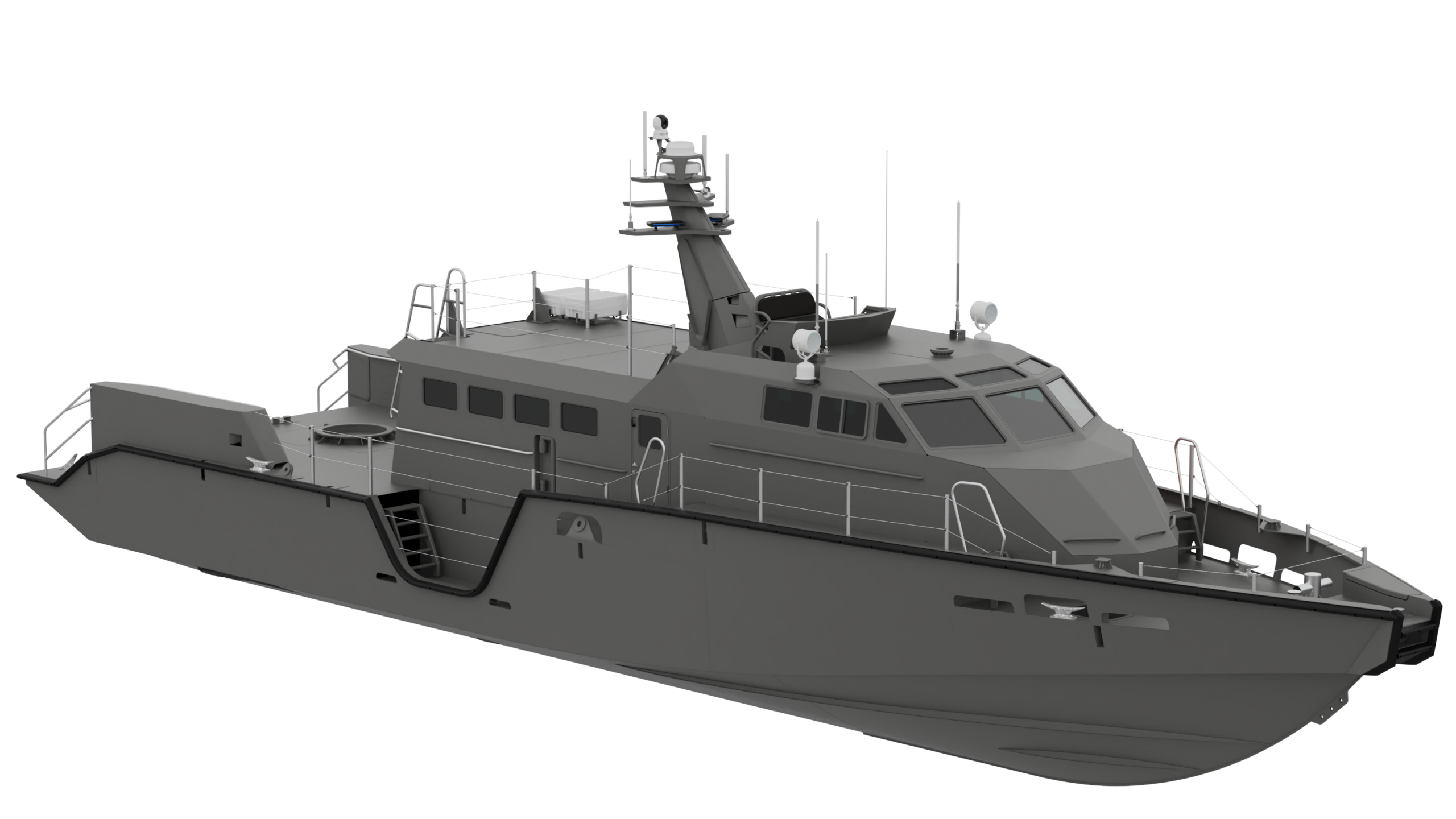

Mk VI Patrol Boat
The Mk VI PB is the U.S. Navy’s next generation Patrol Boat. The Mk VI PB’s mission is to provide operational commanders a capability to patrol shallow littoral areas beyond sheltered harbors and bays and into less sheltered open water for the purpose of force protection of friendly and coalition forces and critical infrastructure. The 85-foot Mk VI PB is designed for optimal performance, fuel economy, and firepower. Systems are designed to reduce Total Ownership Cost (TOC), minimize manpower and improve reliability and maintainability. Powered by twin diesel engines and water jets, the Mk VI PB is capable of speeds in excess 30 knots at full load and a range in excess of 600 nautical miles. She has berthing accommodations, galley and head/shower facilities to allow for extended missions. Additionally, the boat can be outfitted with ballistic protection and armed with a variety of crew served and remotely operated weapons.

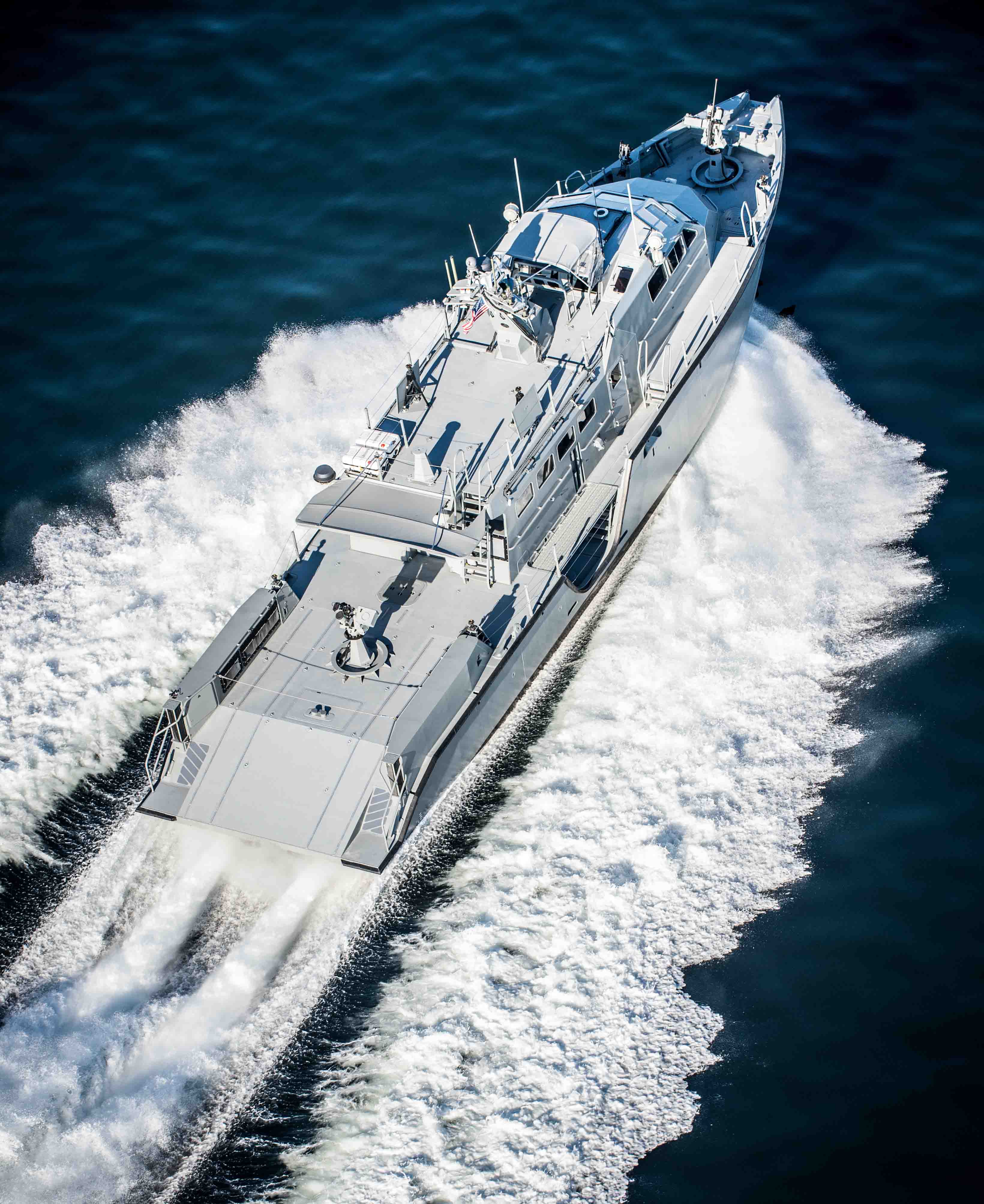

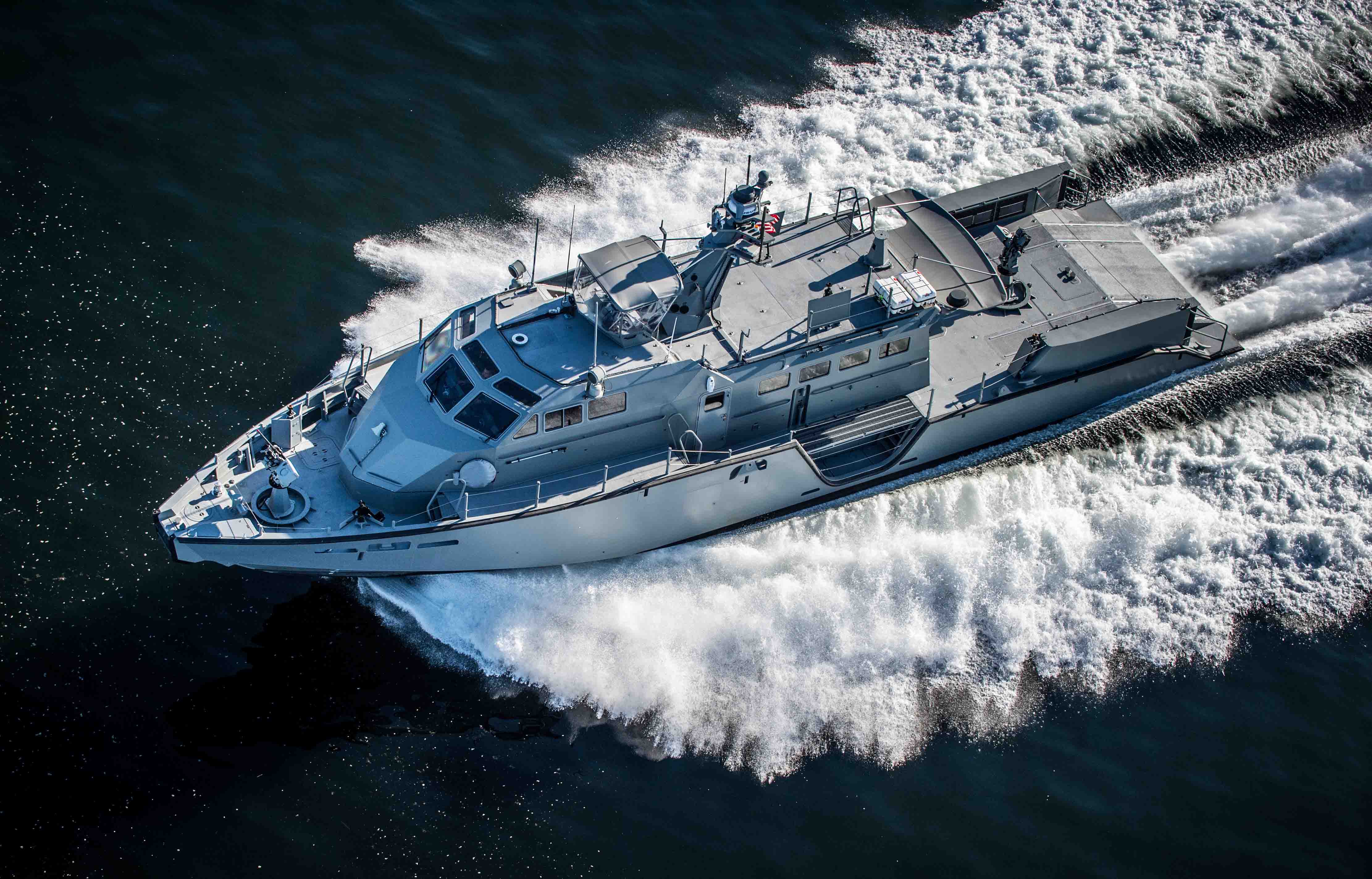

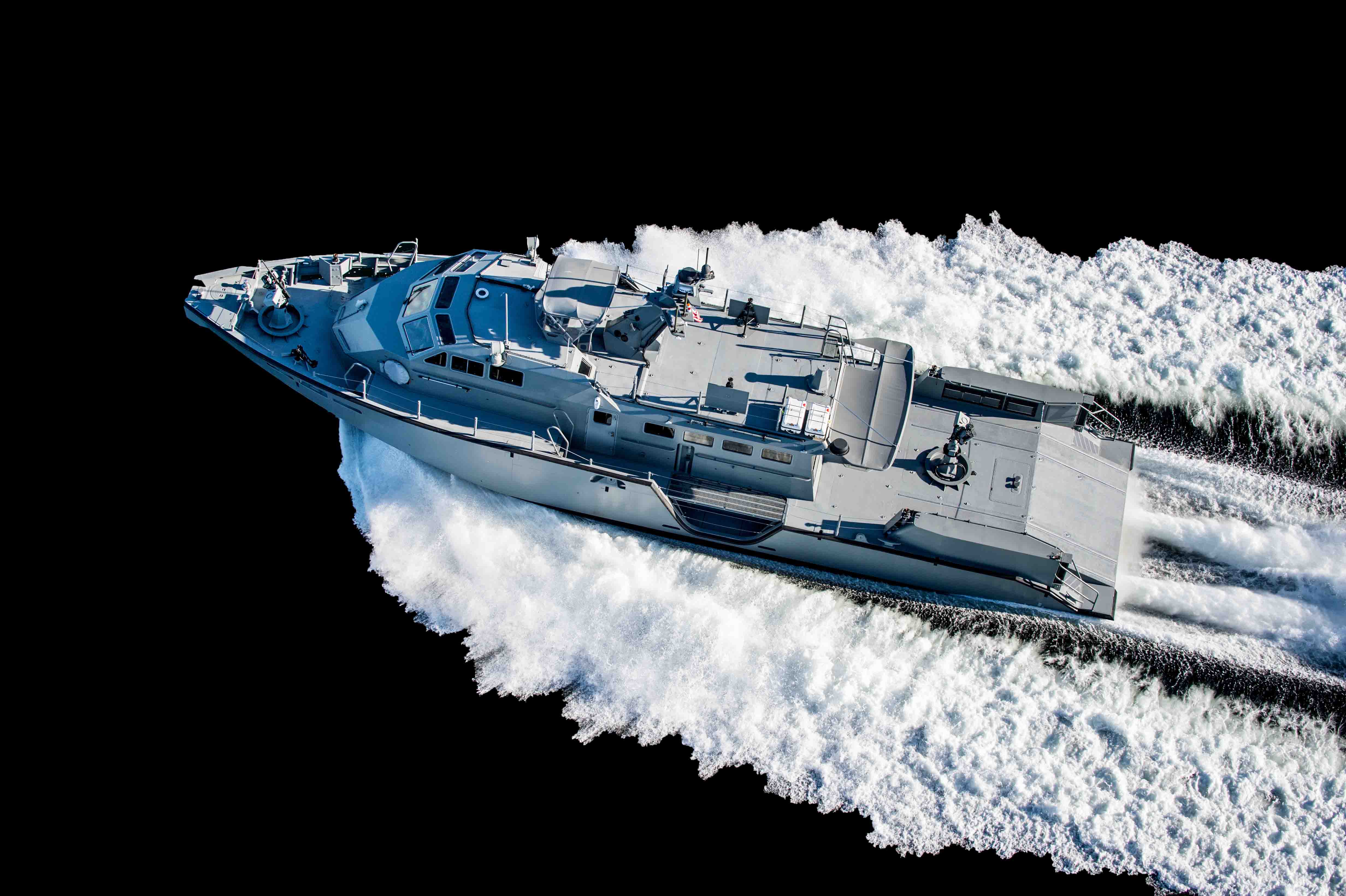

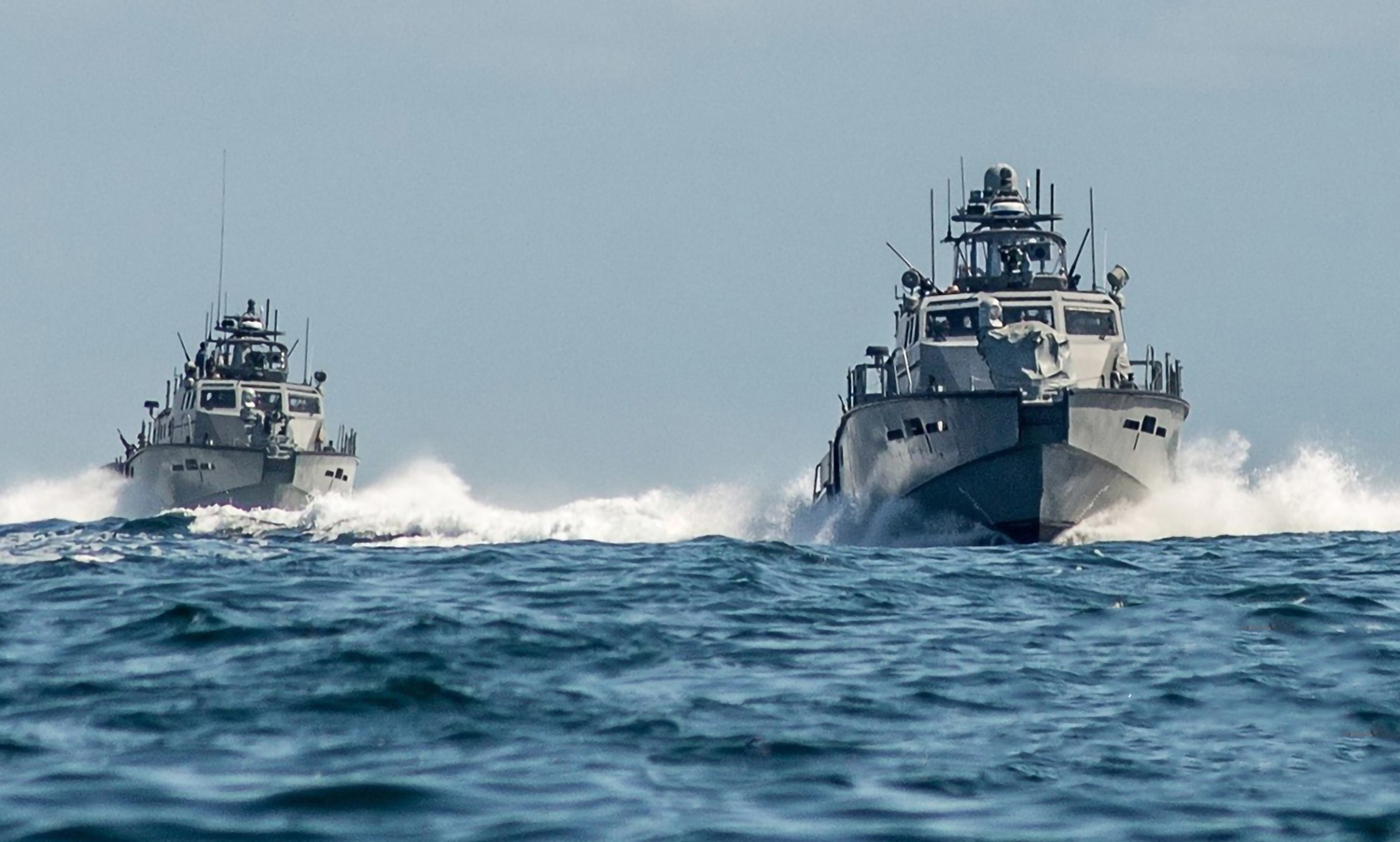

The vessel in action
Specifications
All specifications and standard features are subject to change. Not all options are available on all models. Please contact SAFE Sales Department for details.
Capacity
- Max Range (NM):
- 650+
- Crew Members:
- 10
Dimensions
- Length Overall (LOA):
- 84'-8"
- Beam Overall (BOA):
- 20'-6"
- Deadrise at Transom (Degrees):
- 22
Engines
- Max HP:
- 5,200
- Top Speed (Knots):
- 40+
Weight
- Maximum Payload (lbs):
- 7,500+
Features
Built for seas that other boats avoid. Stability and predictability in conditions that matter.
Structure Material
- Sand cast (3560 T6)
- Plate and sheet (5086 H116 or 5086‐H117; in non‐welded
applications 6061 T6 or 6061 T651 may be substituted.) - Extrusions (5086 H111; in non‐welded applications 6061 T6 or
6061 T52 may be substituted.) - Drawn tube (5086 H32; in non‐welded applications 6061 T6
may be substituted.)
STABILITY
- Vessel meets U.S. Navy small craft stability criteria
Deck
- Paint-on non-skid applied to walking surfaces
- Limber holes installed throughout vessel to allow for drainage
to bilge area - Self-bailing decks; watertight and quick-drain exterior decks
- Scupper drains installed forward and aft to de-water in all
operational, storage and transport conditions, including static
and running trim and any angles of heel - Consideration given to allow spent ammunition casings to
leave deck - Stern ramp acts as a jet propulsor guard and swim platform
- Capable of launch, recovery, stowage and transport of two 4.7m
rigid inflatable boats equipped with outboard engine and fuel

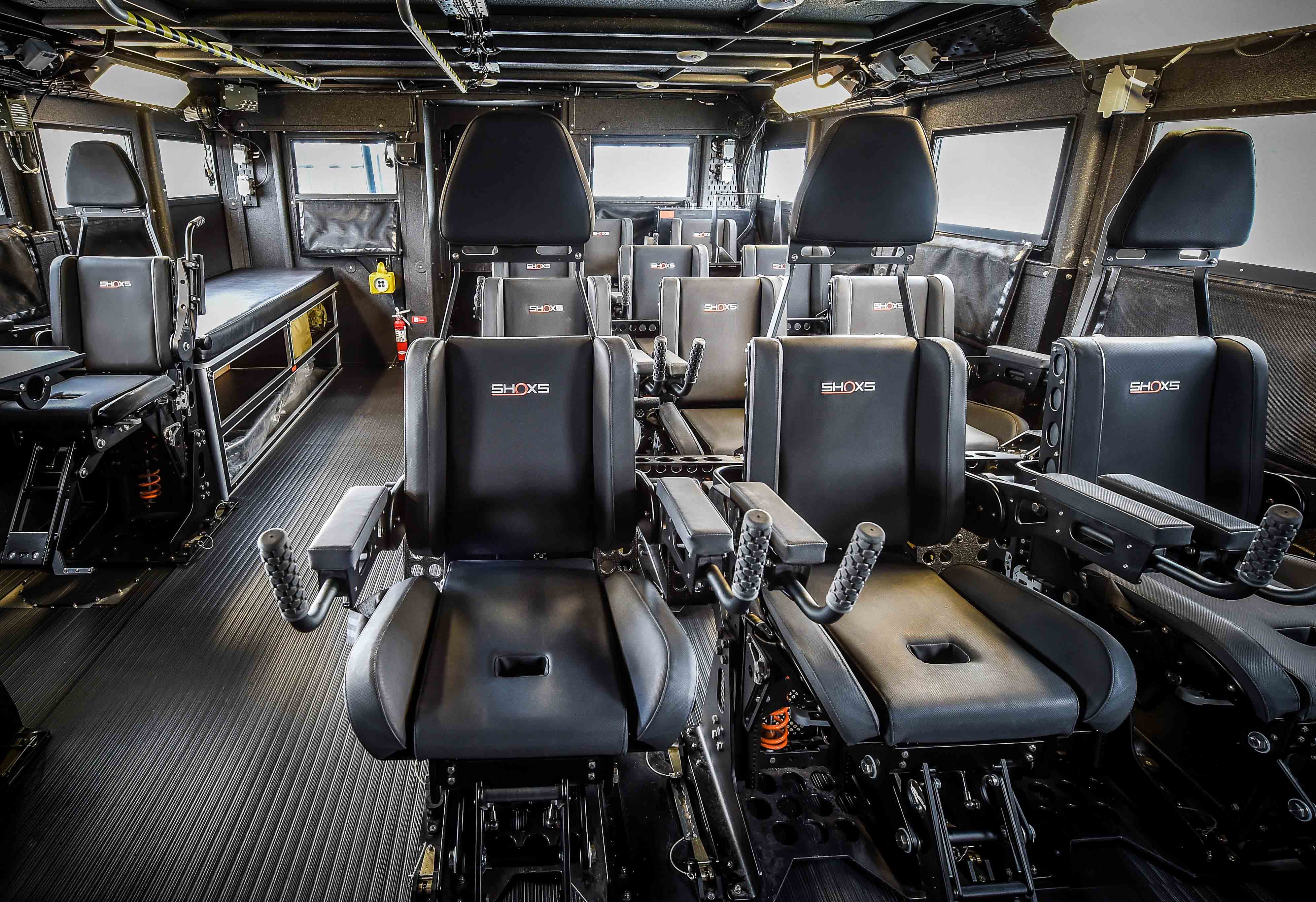

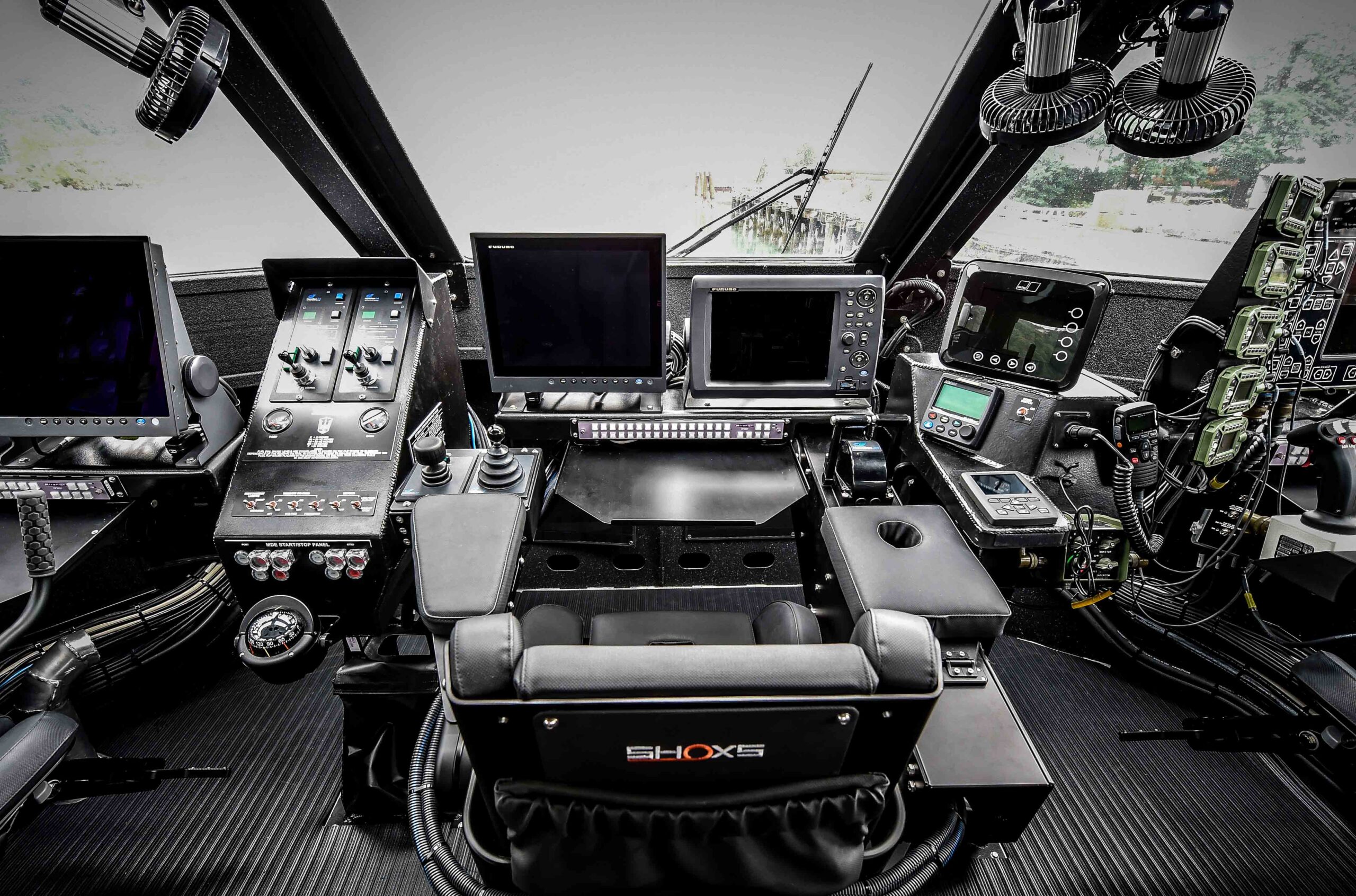

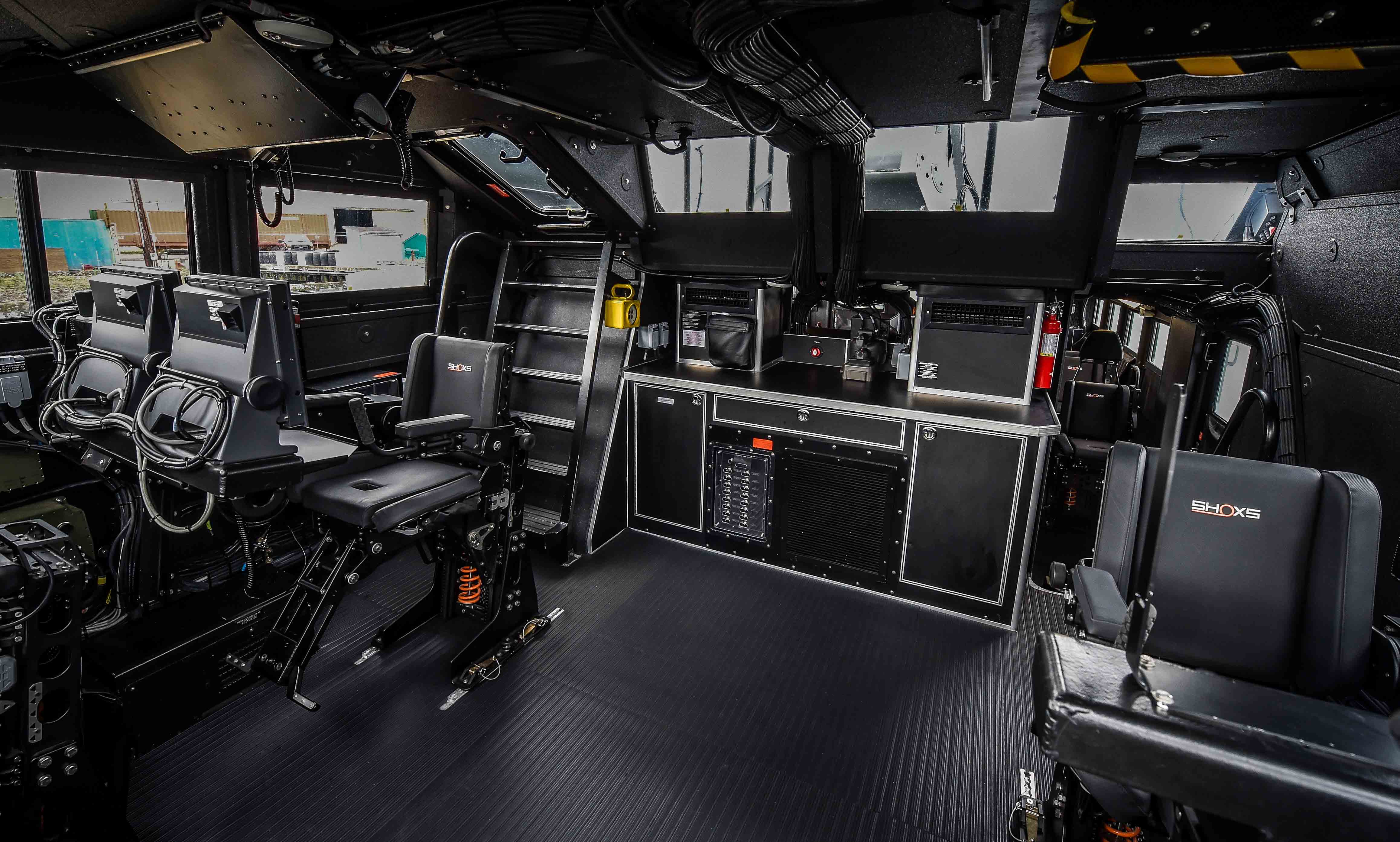

Pilothouse/Main Deck Cabin
- 5‐person pilothouse and 13‐person reconfigurable main deck
cabin; five (5) SHOXS 4800 series workstations in pilothouse;
three (3) SHOXS 4800 series workstations, four (4) SHOXS
4800 seats, six (6) SHOXS 6800 seats in main cabin - Provision for 2 personnel to operate the craft from an external
“fly bridge”; two (2) SHOXS 6800 seats - Pilothouse and cabin with engineered acoustic/thermal
insulation system, heavy duty, watertight, non‐rattling/non‐
vibrating hatches, doors and accesses - Pilothouse and cabin to have 6’-5” minimum unobstructed
vertical clearance for crew to stand during operations - Framed, watertight windows provide 360‐degree field of
vision from operator’s station - Forward pilothouse windows have defrosting glass with
a scratch resistant, water-repelling coating - Main deck cabin equipped with blackout curtains for all
windows and pilothouse passageway - Low profile, shock-mitigating flooring
- Passageways have a 30” minimum unobstructed width
- Main deck cabin easy reconfigurable with simple hand
tools for passenger transport, MEDEVAC, unmanned
vehicle command and control, resupply, additional
berthing, etc. - Hatches and doors are either weather tight or watertight
and tested in accordance with ABYC - All doors and substantial hatches provided with positive
means to secure open and closed - Below deck watertight doors include view port into space
- Doors and hatches featuring ballistic protection are
internally armored and have ballistic glassl
Lifting & Attachment Points
- Dedicated boat tie‐down provisions labelled with load rating
provided for securing boat to the ship and cradle - Provision and adjacent structure sized for applicable load, per
MIL‐STD‐1366E section 5.1.6. - Integrated, removable, and retractable, docking stands deployed
from boat once in well deck are included - Forty-eight (48), SBI-custom, low profile hinged pad eyes
mounted for deck tie-down fittings (normally 10 forward, 10 on
cabin roof, 8 on pilot house roof, 20 aft) - Prominent 4” D-rubber fendering system mechanically fastened
to hull
Crew Comfort
- Integrated HVAC system in pilothouse, main cabin, berthing,
head, galley (65-degrees winter, 78-degrees summer) - Enclosed marine head (includes shower, sink, mirror, macerating
toilet, exhaust fan) - Galley with stainless steel countertop, table, seating, shelving/
storage (includes microwave, two (2) 5.3 cubic-foot fridge/
freezers, sink with hot/cold water) - Six longitudinally oriented bunks for off duty crew
- 100-gallon capacity potable water holding tank; 50-gallon
capacity each grey/black water systems
Safety/Rescue Equipment
- Port and starboard PIW recovery cut-outs provide the crew with
- the capability to retrieve a person or object with no more than
- two crew required
- Ballistic protection includes pilothouse and main cabin armor,
bullet-proof windows in pilothouse and main cabin, armor and
HHS protects boat mobility components, removable panels for
crew-served weapons stations - One stokes litter stored in main cabin
- Four (4) 2-1/2-pound and two (2) 10-pound fire extinguishers
- Machinery space(s) fire suppression system
- Two (2) 2000GPH portable electric bilge pumps, two (2)
1000GPH portable manual bilge pumps; six (6) 24VDC automatic
pumps located throughout vessel
Propulsion
- Engine make/model: MTU 16V2000
- Gearbox selection: ZF 3070
- MTU integrated electronic dimmable
instrument package - Dual Hamilton HM 651 water jets; steering
capable of 180‐degree turn in less than six
boat lengths at cruising speed - One (1) Hamilton Jet handheld remote
(second station) allowing jet unit operation
up to 10M from included handheld remote
junction box - Miller-Leaman duplex stainless steel
seawater strainer for each engine - Engineered independent wet exhaust
systems with high performance, low
backpressure mufflers and/or underwater
discharge through the transom - Fresh water garden hose fittings with root
cut-out valve are installed in‐line with
cooling system to allow for freshwater flush
of engines and genset - Installed quick‐disconnect dry hydraulic
fitting for draining of each engine,
transmission, and generator oil sump
Fuel System
- Dual fuel tank system with manual and
- electronic gauges
- 2-1/2” fuel fill with positive‐locking fuel
shut‐off valves; capable of re-fueling/
transferring from port or starboard
Batteries/Power Supply
- Engine starting consists of one (1) bank
configured with four (4) 12VDC batteries,
connected in series/parallel to provide
24VDC. - House battery bank consists of one (1)
bank configured with four (4) 12VDC
batteries, connected in series/parallel to
provide 24VDC. - Generator starting consists of one (1) bank
configured with two (2) deep cycle, 12VDC
batteries connected in series to provide 24
VDC. - Generator starting battery bank provides
back‐up power provision for Hamilton
MECS control system - Alternator charging consists of one (1) pad
mount alternator (200A; 28VDC; two‐pole)
mounted to each MDE - 240/120VAC/60Hz, 100A shore power
distribution system including shore power
receptacle, isolation transformer, GFCI
breaker for over-current protection - 33.0EDE NMEA 120/240VAC 60Hz, 33Kw
Westerbeke generator integrated into
electrical system - 12VDC and 24VDC power outlets
with weatherproof covers co-located
throughout vessel - Multiple 120VAC power outlets located
throughout vessel
Lighting/Electronics
- 24VDC overhead lighting, low level
courtesy deck lighting; deck work lights - Displays and LED lighting are NVIS
compatible - COLREGS-compliant LED navigation lights
- Handheld and fixed spot lights
- Navigation horn and on-board PA system
with talk-back system - CCTV system with cameras in engine and
pump rooms, exterior decks and weapons
stations (eight total) - Law enforcement hailer/siren and lighting
- Navigation system
- Autopilot system
- VHF marine radio
- Additional equipment racks with power
supply
Applications
Designed to
perform
From firefighting to law enforcement, the SAFE transforms to meet your operational needs. Select configurations that match how you work, not how others do.
Fire and rescue operations
Integrated pump systems and deck layouts designed for rapid response and crew SAFEty.
Law enforcement patrols
Enhanced visibility, pursuit capability, and secure storage for tactical equipment and personnel.
Military and special operations
Modular systems, reinforced mounting points, and configurations built for demanding deployments.
Search and rescue missions
Extended range, stable platforms for recovery operations, and crew protection in rough seas.
